This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.
Front End: Dash panel (panel behind dash), as well as welding in the instrument panel, shroud panel, windshield frame
Doors: outside and inside metal, locks, window mechanisms
Rear quarter panels: inner and outer rocker panels, rear quarter panel attachment to roof
Roof: drip rail, lamp supports, inner and outer rails, roof bows
Trunk: lid, anchor plates for trunk hinges - welded mounting points
seat supports
floor pan crossbars and more
front, center, and rear pillars
center partition
rear quarter window gutter

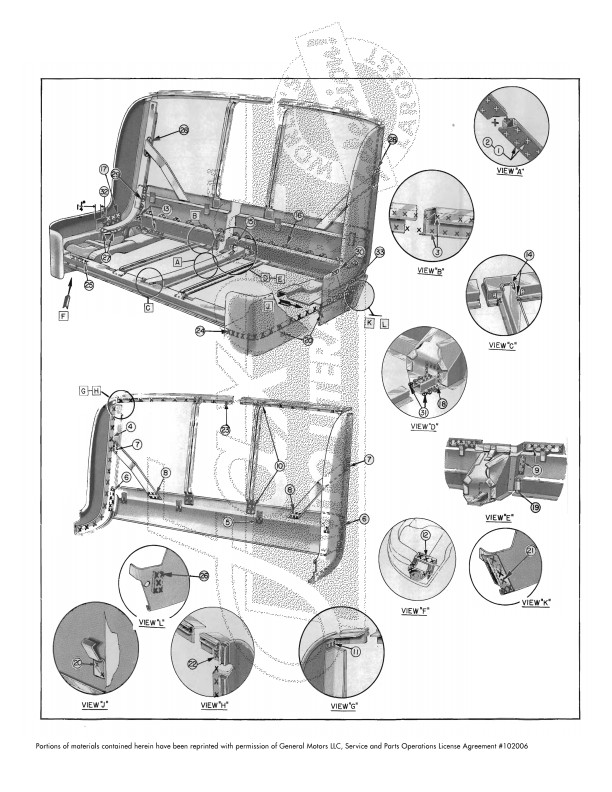

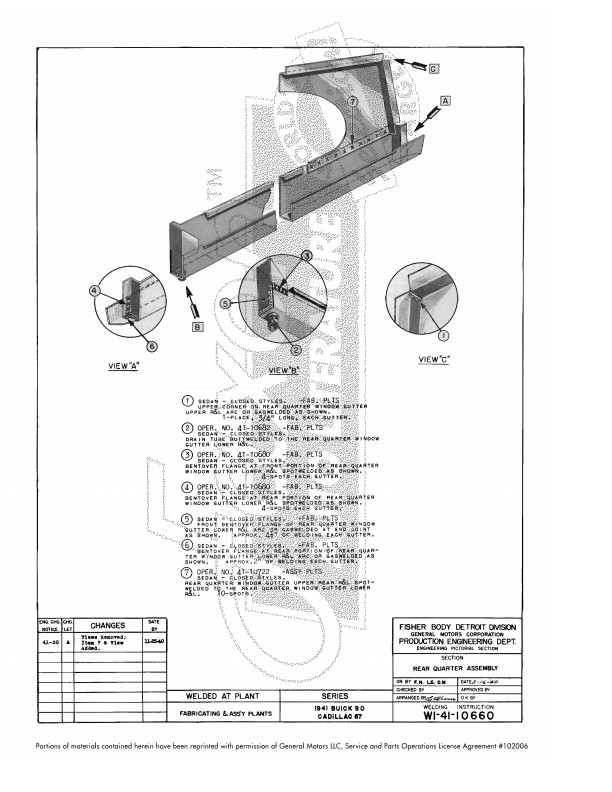

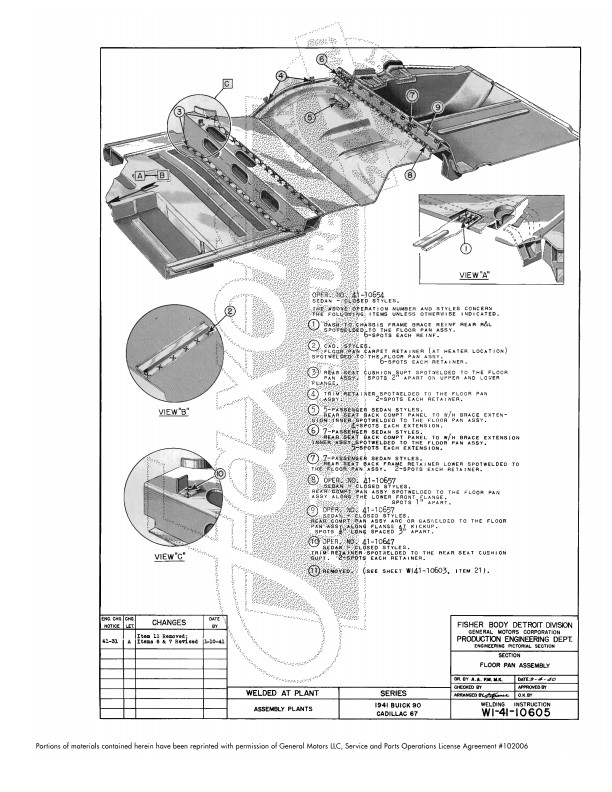

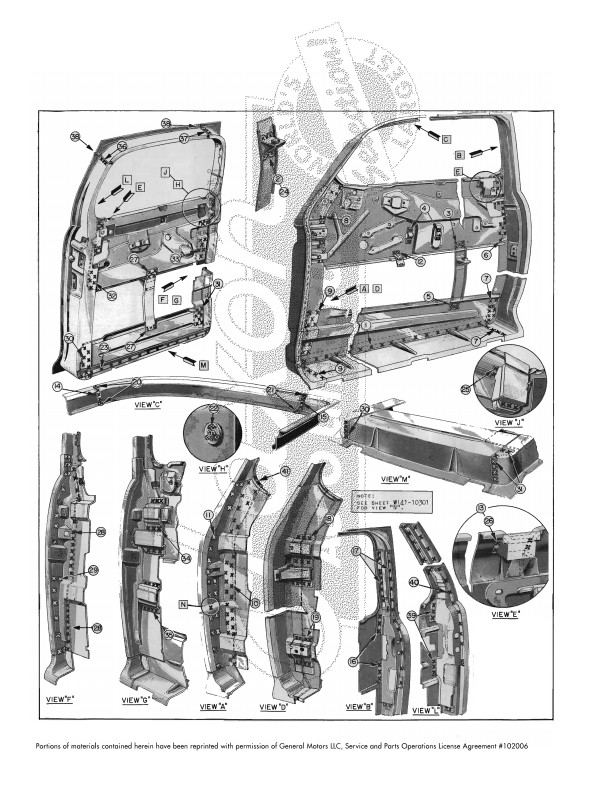

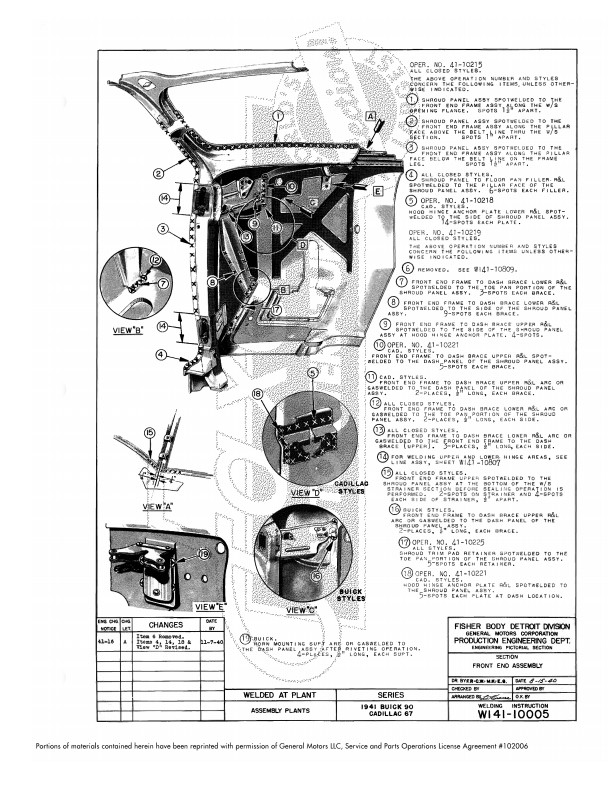

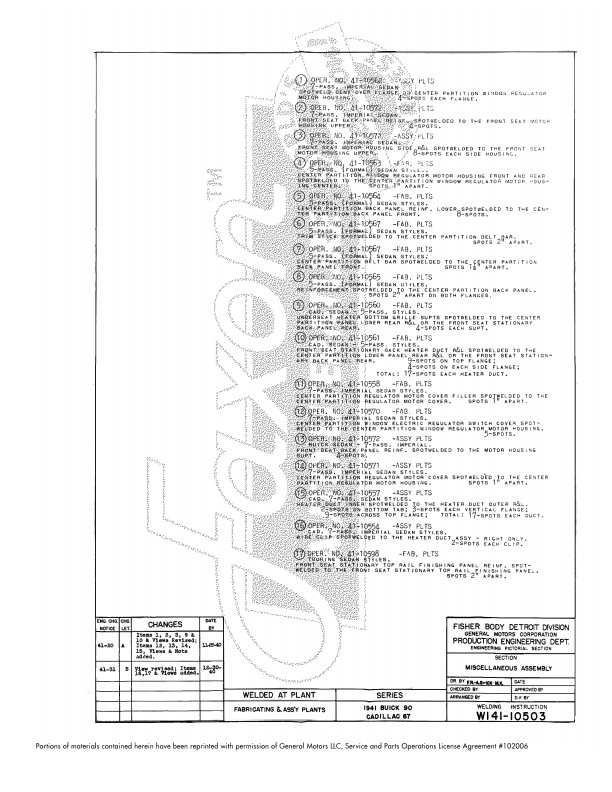

The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the sample page image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
