This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.
Front End: firewall welds
Rear quarter: inner and outer quarter panels, lock pillar, wheelhouse
Front and rear seats: springs
Underbody: how floor pan is welded in, and also how other parts are welded to floor pan and rocker panels
Roof: dome lamp support
Side frame: front pillar, center pillar, rear pillar
Final assembly: welding many of the above large parts to each other, rocker panels, welds behind taillights, glass channels, roof panels, trunk and tailgate hinges

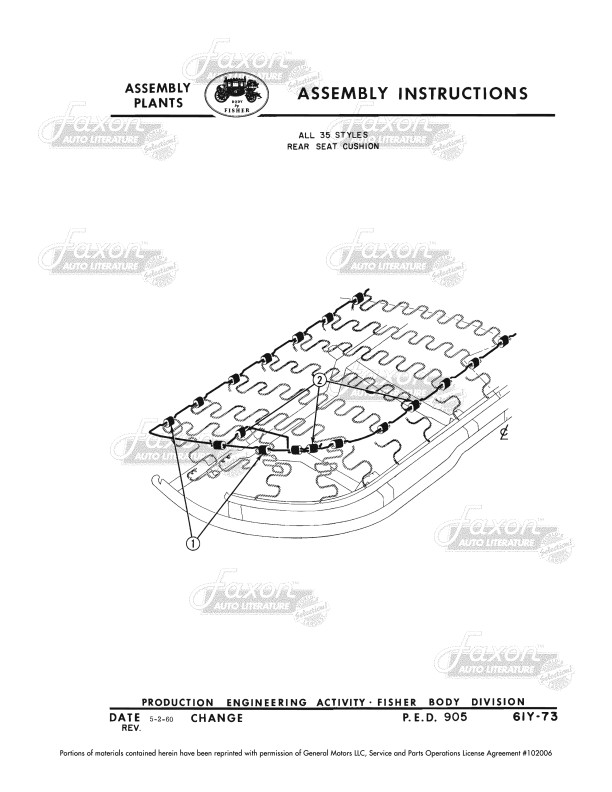

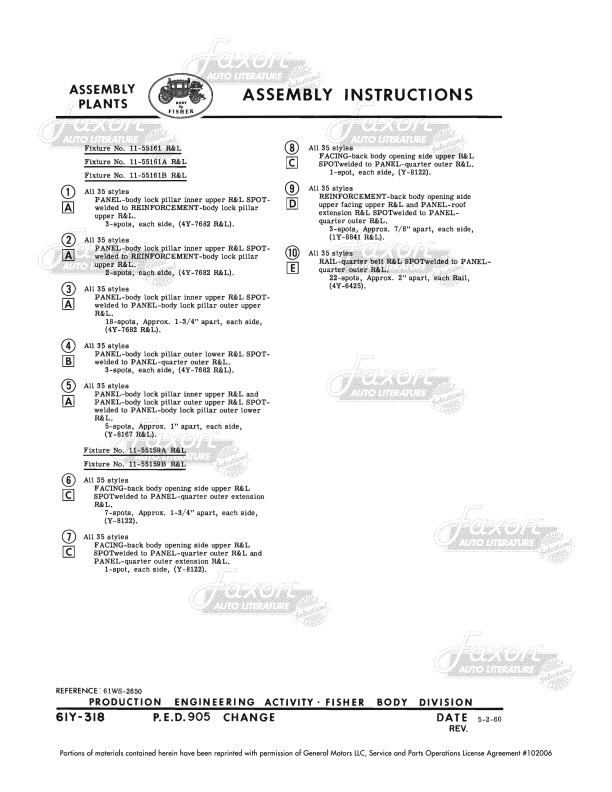

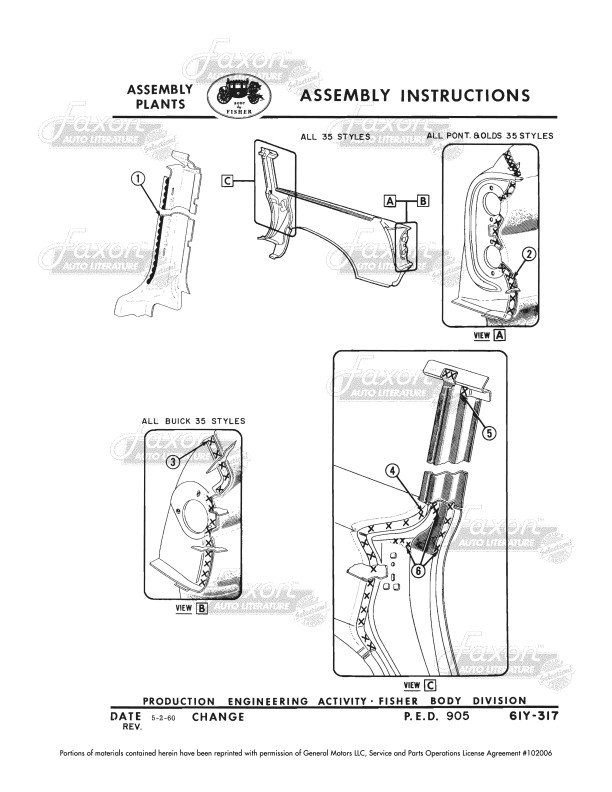

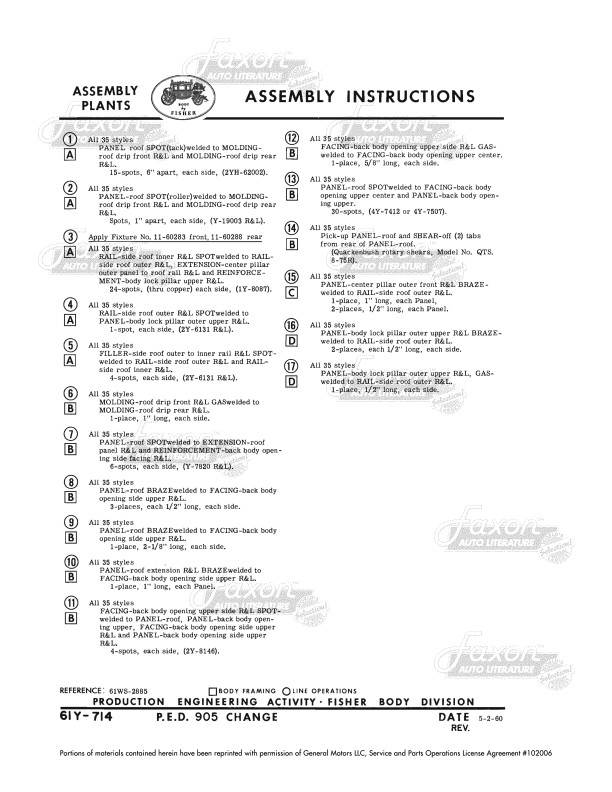

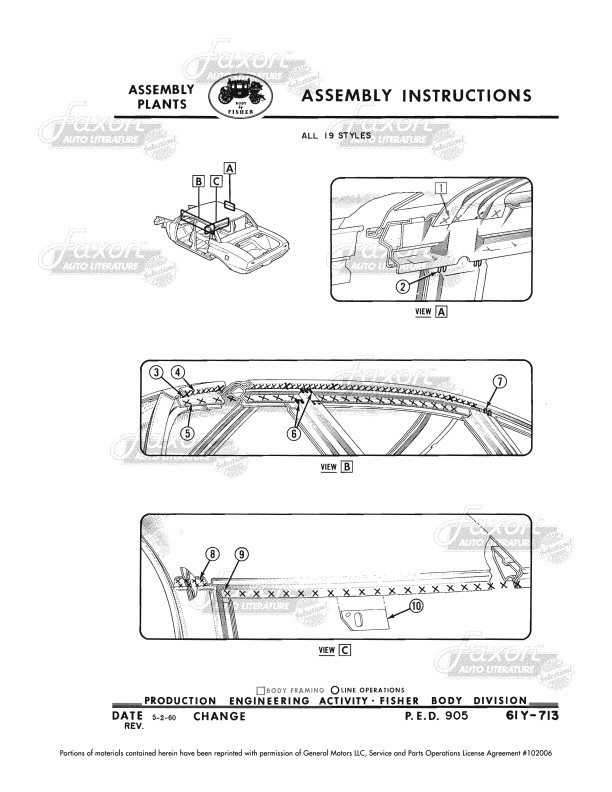

The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
